Description

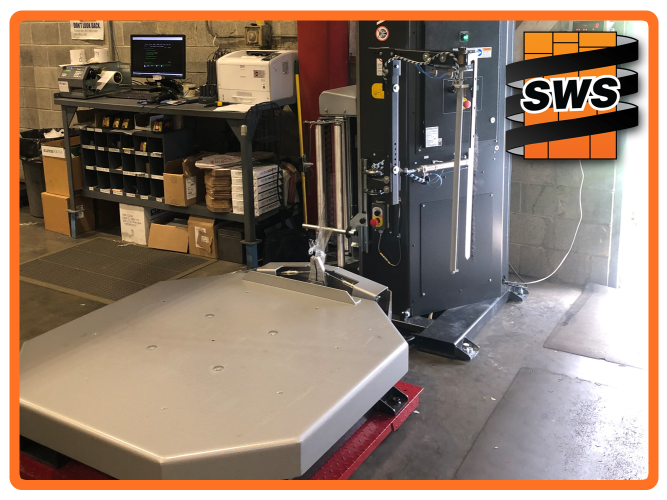

Turntable stretch wrappers are a type of stretch wrapping system that utilizes a rotating turntable relative to a vertically rising film carriage attached to the machines tower or “mast”. The SMHPA-200 features Wulftec’s powered NO-THREAD pre-stretch carriage with 20″ and 30″ options with a carriage drive featuring two #50 carriage chains housed inside the 14 gauge formed steel tower for operator safety.
As with all Wulftec machines, the SMHPA-200 comes with a lifetime warranty on pre-stretch rollers. With a pre-stretch ratio that can go from 50% to 300%, you can rest assured that our technicians will have your SMHPA-200 carriage dialed in for efficient film use, reducing costs and labor hours.
The SMHPA-200 turntable has a variable speed of 0-16 RPM powered by a 1 HP AC motor with an Allen Bradley variable frequency drive. The 51″ x 51″ octagonal turntable is 1/4″ thick and stands 13 1/4″ off of the ground – utilizing 4 casters with polyurethane coating and tapered roller bearings.
- Built by Wulftec
- Installed, customized and serviced by Stretch Wrap Systems
- 5,000lbs load weight capacity
- Dust tight and waterproof UL508A approved NEMA 4/12 control panel
- 100% Structural Steel Construction
- Superior Electrical/Electronic Design including Allen Bradley MicroLogix PLC and AC drives
- 20″ NO-THREAD® Powered Pre-Stretch Carriage with 30″ option
- State-of-the-art electrical control panel with all finger safe electrical components
- Carriage lifting chains enclosed inside tower for operator safety
